The Legend of Durability.
The Apex frame is widely recognized as one of the toughest frames in the FPV hobby. Featuring a unique “Compressed X” geometry, it offers a perfectly balanced center of gravity for locked-in freestyle performance. Whether you are smashing concrete at a bando with the 5-inch or cruising mountain peaks with the 7-inch, the Apex is built to take a beating and keep flying.

Heavy-Duty 5.5mm Arms
Both the 5-inch and 7-inch versions feature ultra-thick  5.5mm carbon fiber arms . This ensures maximum rigidity, eliminating frame resonance and vibration to give you the smoothest possible video footage.

Choose Your Version:

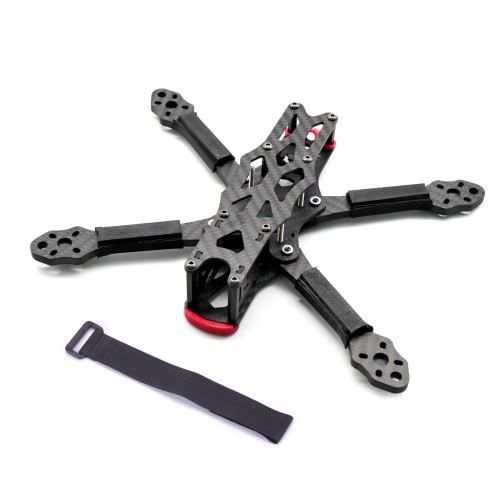

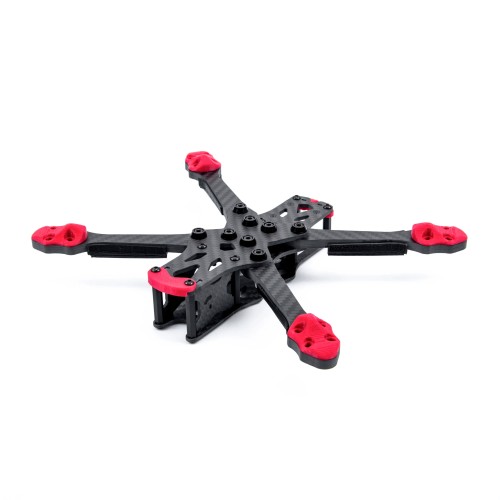

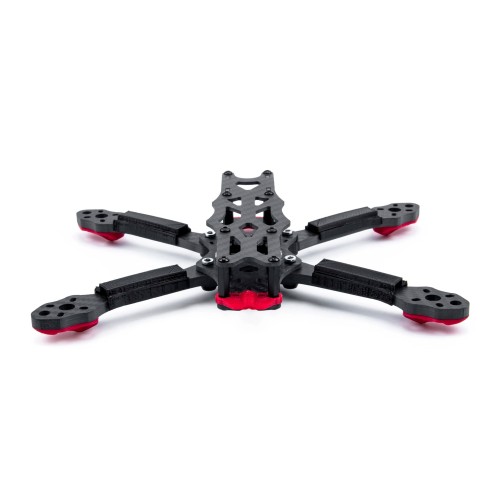

• Apex 5-Inch (225mm):  The standard for aggressive freestyle. Agile, responsive, and virtually indestructible.

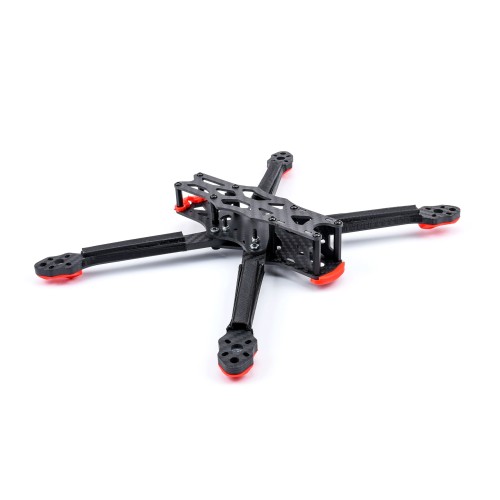

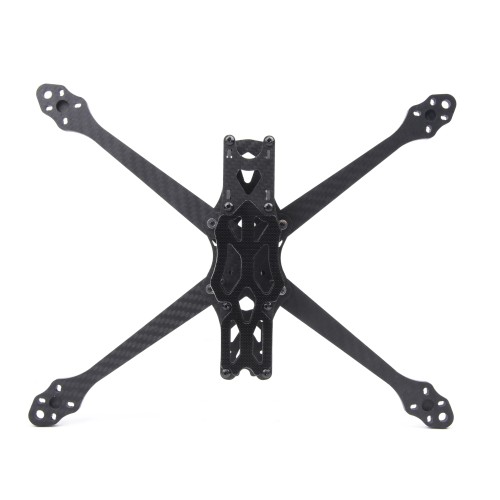

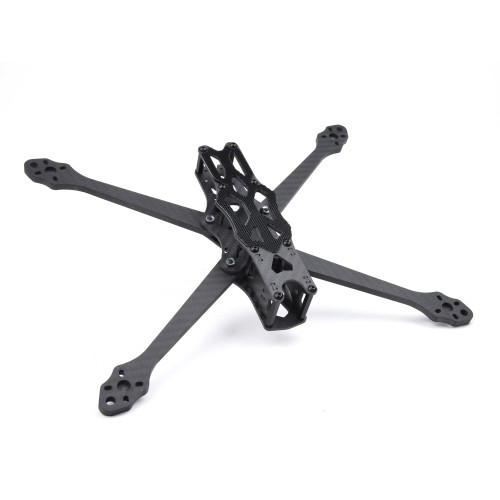

• Apex 7-Inch (295mm):  The long-range specialist. A stretched wheelbase designed for stability and efficiency when carrying larger batteries and cameras.

Key Features:

• Compressed X Geometry:  Keeps the frame compact while maintaining stability.

• High-Quality Carbon:  3K matte carbon fiber with chamfered edges.

• Universal Mounting:  Fits both 20x20mm and 30.5×30.5mm electronics stacks.

• Camera Protection:  Side plates extend to protect your FPV camera lens during crashes.

Technical Specifications & Recommendations

Option 1: Apex 5-Inch (Freestyle)

• Wheelbase:  225mm

• Arm Thickness:  5.5mm

• Weight:  Approx. 138g

• Frame Layout:  Compressed X

• Top Plate:  2.0mm |  Bottom Plate:  2.5mm |  Side Plate:  2.0mm

Recommended Parts for 5-Inch:

• Flight Controller:  F405 or F722 Stack (30.5×30.5mm)

• Motors:  2207 / 2306 (1750KV – 2550KV)

• ESC:  45A – 60A 4-in-1 ESC

• Propeller:  5-Inch (e.g., 5043, 5146)

• Battery:  6S 1100-1300mAh or 4S 1500mAh

Option 2: Apex 7-Inch (Long Range)

• Wheelbase:  295mm

• Arm Thickness:  5.5mm

• Frame Layout:  Stretched X

• Top Plate:  2.0mm |  Bottom Plate:  2.5mm |  Side Plate:  2.0mm

Recommended Parts for 7-Inch:

• Flight Controller:  F722 or F405 (30.5×30.5mm)

• Motors:  2806.5 / 2807 (1300KV – 1700KV)

  • Note: Can also use 2306 for lightweight builds, but 28xx is recommended for efficiency.

• ESC:  50A – 60A 4-in-1 ESC

• Propeller:  7-Inch (e.g., 7040, 7035)

• Battery:  6S 1800mAh – 3000mAh LiPo/Li-Ion

Package Includes:

• 1x Apex Carbon Fiber Frame Kit (Select 5-Inch or 7-Inch)

• 1x Battery Strap

• 1x Hardware Set (Screws, Standoffs, Nuts)

APEX 5inch /7inch frame without 3d printing:
