The Classic Freestyle Workhorse, Now HD Ready.

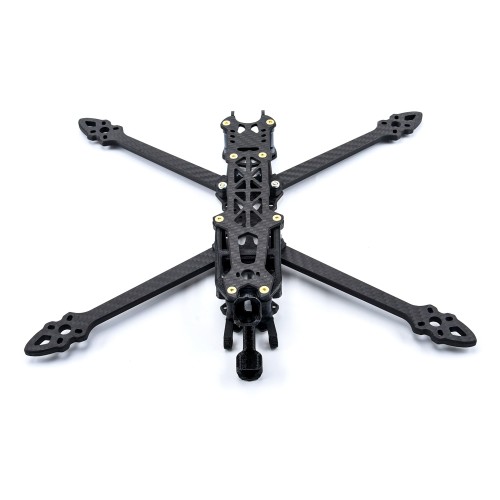

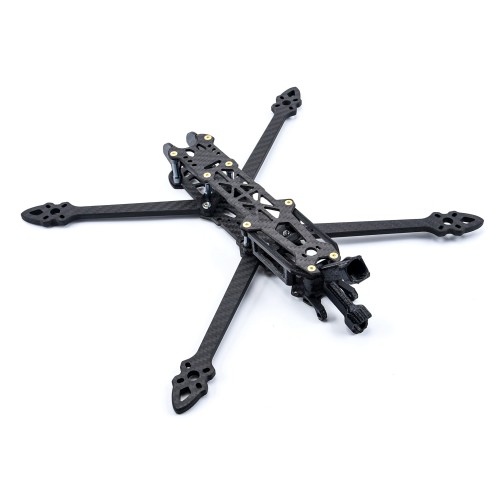

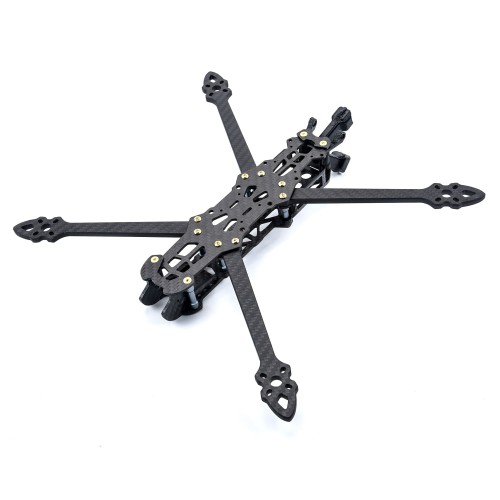

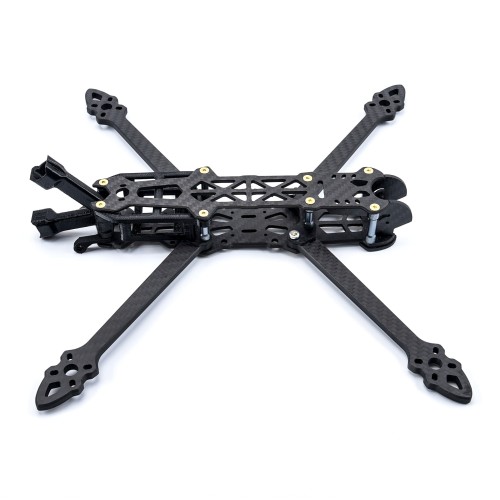

The Mark4 HD is one of the most popular frame geometries in FPV, known for its distinct low center of gravity and super-durable design. Updated to accommodate modern digital FPV systems, this frame features a roomy fuselage designed specifically to fit the DJI Air Unit, Caddx Vista, or standard Analog setups.

Two Sizes, One Proven Design:

• Mark4 HD5 (5-Inch): The standard for freestyle flying. With a 224mm wheelbase, it offers agile, locked-in handling perfect for bando bashing and cinematic tricks.

• Mark4 HD7 (7-Inch): Built for long-range exploration. The stretched 295mm geometry supports larger props and batteries, giving you the efficiency needed for mountain surfing and long-distance cruising.

Key Features:

• High-Quality Carbon: Features full 3K woven carbon fiber with chamfered edges for a smooth finish.

• Durable Arms: Both versions utilize 5mm thick arms, ensuring high crash resistance and minimal vibration for jello-free footage.

• HD Integration: The frame layout is optimized for the DJI FPV Air Unit, providing ample airflow for cooling and secure mounting.

• H-Shape Geometry: Provides a spacious deck for building while keeping the props out of view in most HD recording angles.

Technical Specifications

Recommended Parts (Not Included)

For Mark4 HD5 (5-Inch Build):

• Flight Controller: F405 or F722 Stack (30.5×30.5mm)

• Motors: 2205 / 2207 / 2306 (2300KV-2750KV)

• ESC: 40A – 50A 4-in-1

• Propellers: 5-Inch (e.g., 5043, 5146)

• Battery: 4S 1500mAh or 6S 1150mAh

For Mark4 HD7 (7-Inch Build):

• Flight Controller: F722 or H7 Stack

• Motors: 2806.5 / 2807 (1300KV-1700KV)

• ESC: 50A – 60A 4-in-1

• Propellers: 7-Inch (e.g., 7040, 7035)

• Battery: 6S 1800mAh – 2200mAh LiPo or Li-Ion Pack

Package Includes:

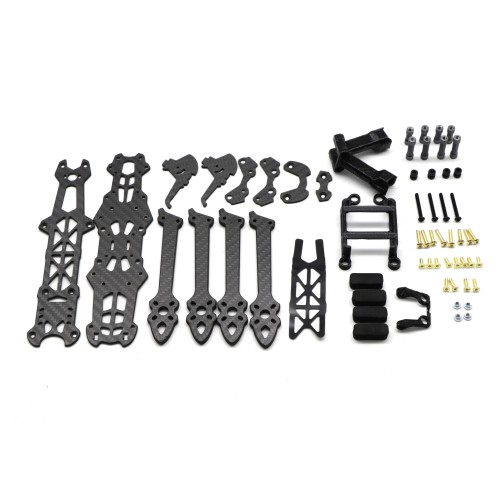

• 1x Mark4 HD Carbon Fiber Frame Kit (Unassembled)

• 1x Hardware Set (Standoffs, Screws, and accessories)

• (Note: Electronics and motors are not included)
